Model：Revival-1450
Power：380V AC3Ø 50Hz
Basic Specifications

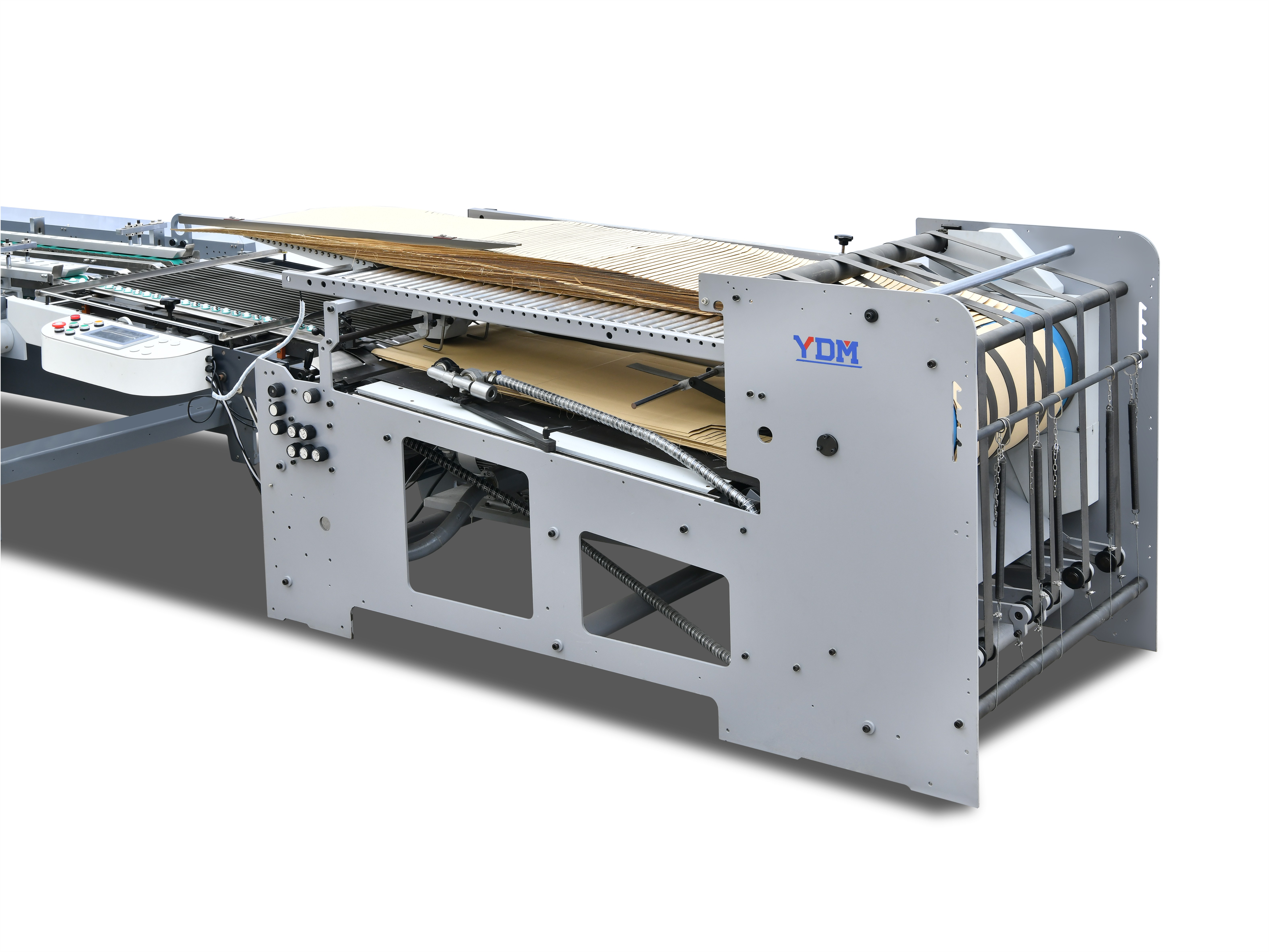

Feeder
| Feeder with suction, front suction turntable and back suction nozzle keep stable feeding |
Register
| Lengthened type sided register is equipped with diagonal belt with steel ball, making the running stable and accurate especially for thin paper. |
Paper bag machine Leveling design
| Lower suction help avoid the paper curl up and distortional |

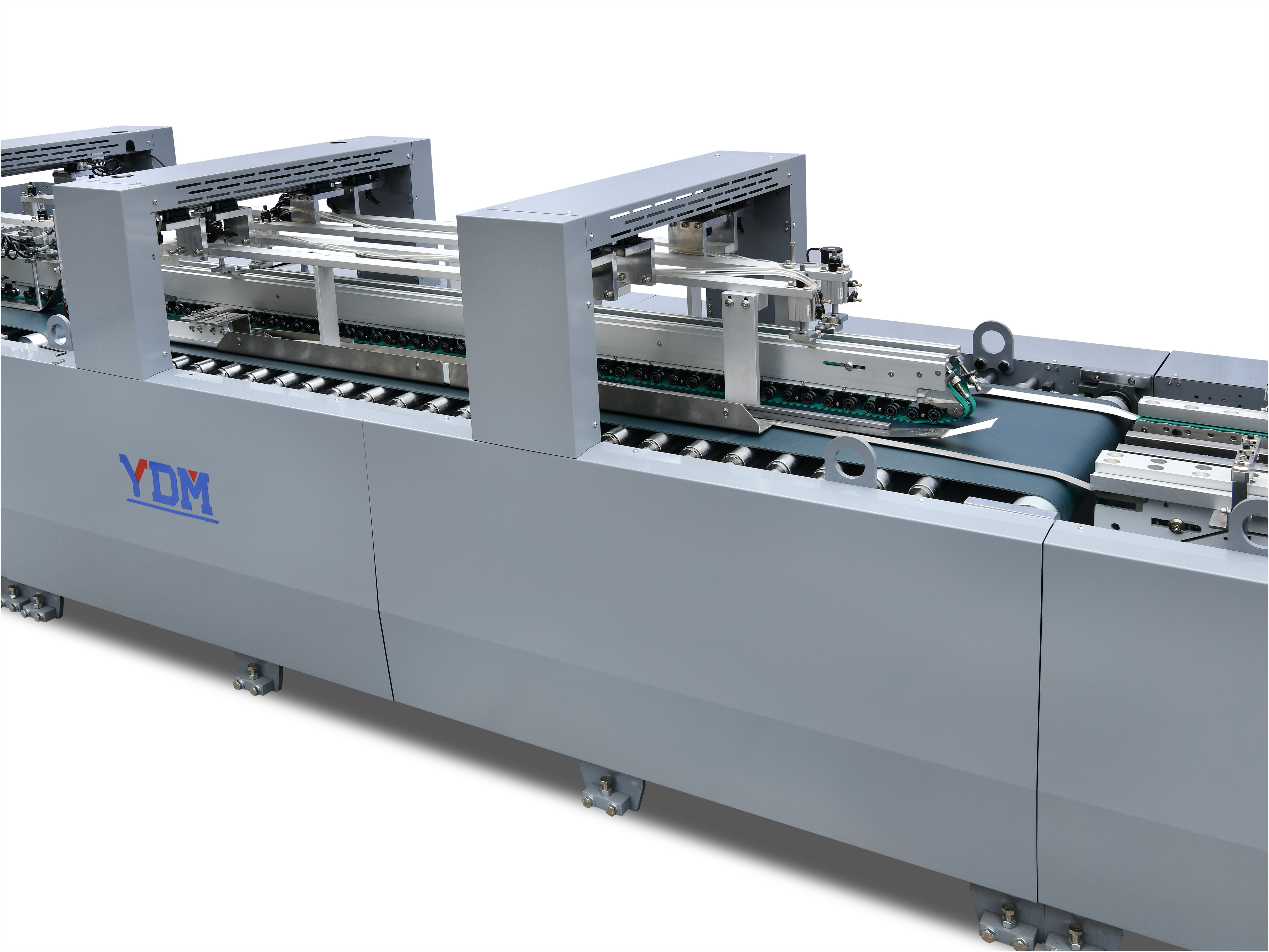

Paper bag machine Accordion flip section
| 1.Special long folding section, boxes can be well folded and formed in this section. 1st line 180°，3rd line 135°. 2.Up board is sectional type and flexible adjustment. 3.Folding belt adopt main transmission function. 4.Auto motorized adjustment system with wireless remote control 5,Folding belt： Chiorino， Italy. 6.hot glue system with2 guns 7.FLIP with roller and climb. Thin paper runs fast and easy to control. |

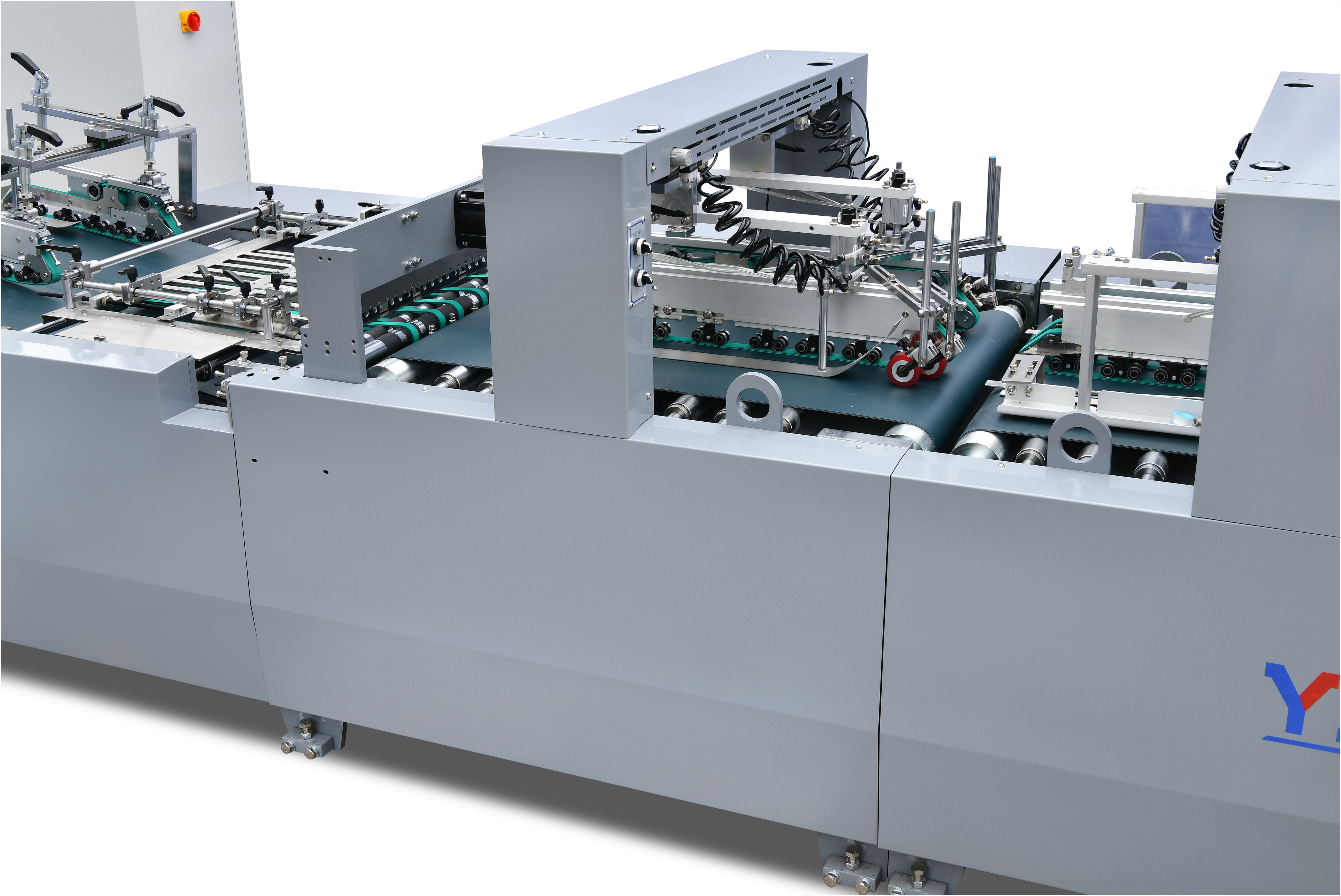

Flip open and sides fold
| 1, adjustable boards, left and right. 2.Sensor control cut. 3.Servo motor make location accurate. 4.hot glue unit:2 nozzles. |

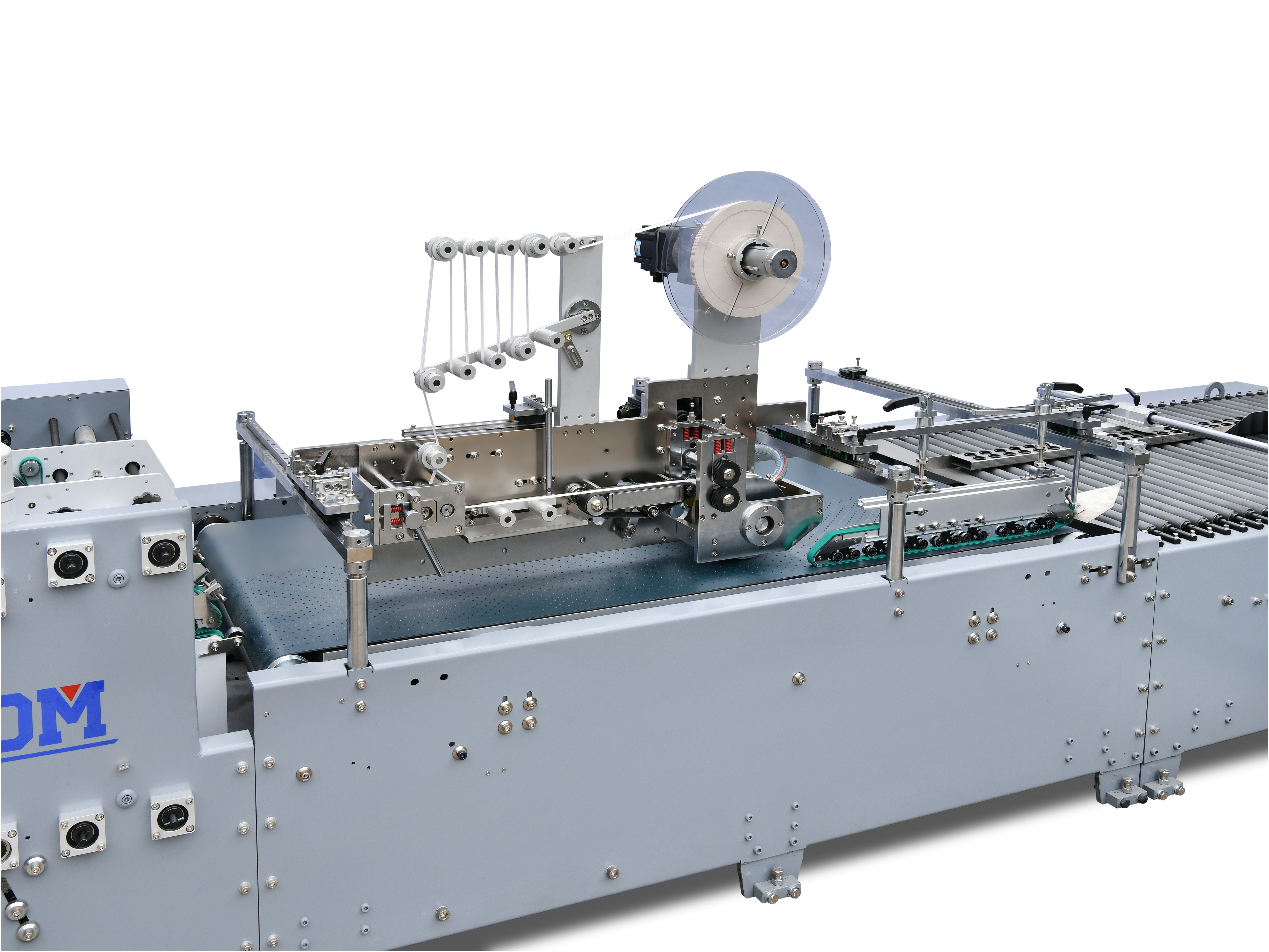

Hot glue and paste release paper
| 1.Folding belt：SIEGLING，Germany 2.Hutchinson poly V-belt，France 3.Glue :hot glue system ,air cylinder made in japan work with hot glue gun ,digitization control the glue length and speed, make the speed cooperate with the main monitor, keep the glue cut clean and accurate, no stringy or adhesion 4，Release paper: servo motor for feeding , running , cut and sucking，digitization control the glue length and speed, make the speed cooperate with the main monitor. |
Molding
| 1.Outer folding belt speed can be controlled and avoid the fish mouth. 2.Folding belt：SIEGLING，Germany， Chiorino， Italy. 3.Hutchinson poly V-belt，France |
Pressing section
| 1.Upper and lower belts can be flexible adjustment. 2.PLC and industrial control work together to realize the linkage with main motor, remote controller, easy to operate. 3.Folding belt：SIEGLING，Germany 4.Inner boards move by automatic electronic , saving energy , time ,and power, keep high efficiency. |
REMARK | |
1. your destination Port Handling Expenses and GST. - BUYER 2. Including Installation at factory. - BUYER 3. Testing materials - BUYER 4. Air compressor - BUYER 5. Exhaust system outside of the machine. - BUYER 6. Foundations : electric power and ducting device. – BUYER | |
7. DELIVERY | 45 DAYS READY IN CHINA FACTORY |
8. WARRANTY` | 1 year On Mechanical on normal operation. 1year on Electrical Parts (With Effect from the date of Installation) Excluding :(i) wear & tear parts (ii) Breakdown of machine caused by misuse or carelessness. |
9. INSTALLATION | Quotation including Installation of machine and operator training - (Cost of return airfare, hotel, meals and car rental ---- BUYER) |
10. PAYMENT | 30% DOWNPAYMENT TO CHINA. 70% BEFORE SHIPMENT. BY TT. |
PRICE(USD) | (FOB SHENZHEN) |
Paper specifications
Paper thickness | 120-300gsm |
Speed | 80-120 m/min |
Specification | |

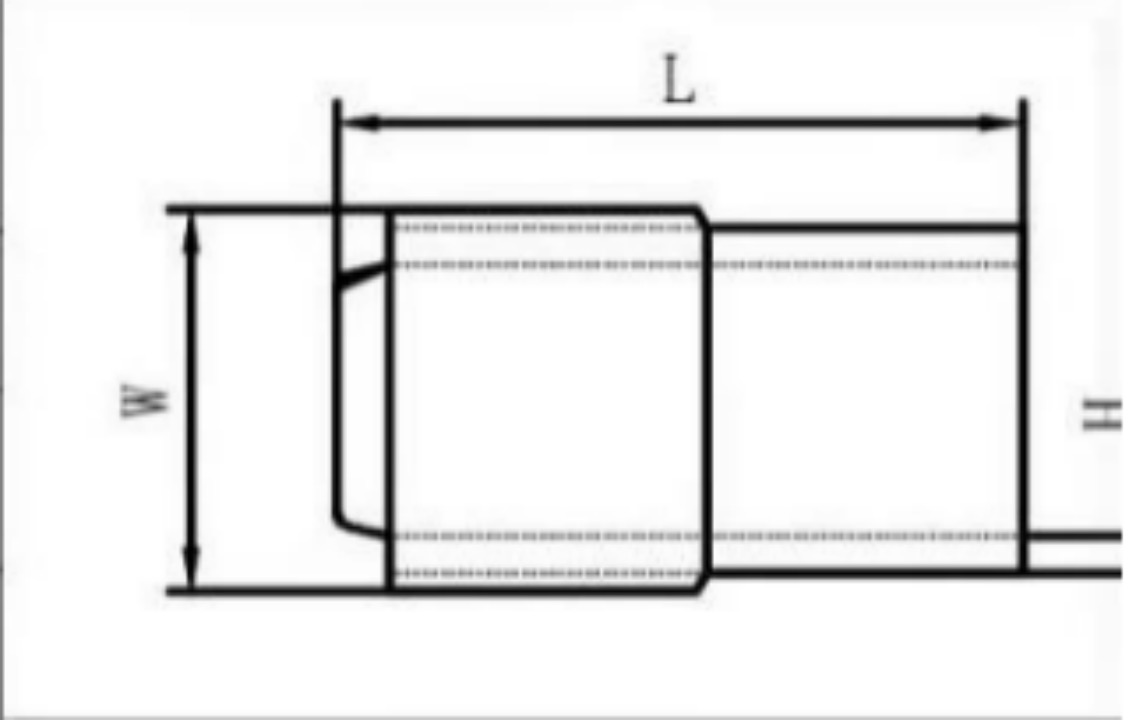

Box Type | Paper Size (unit:mm) |
| min MAX L: 680 - 1450 mm W: 250 - 600 mm H: 20- 40mm |

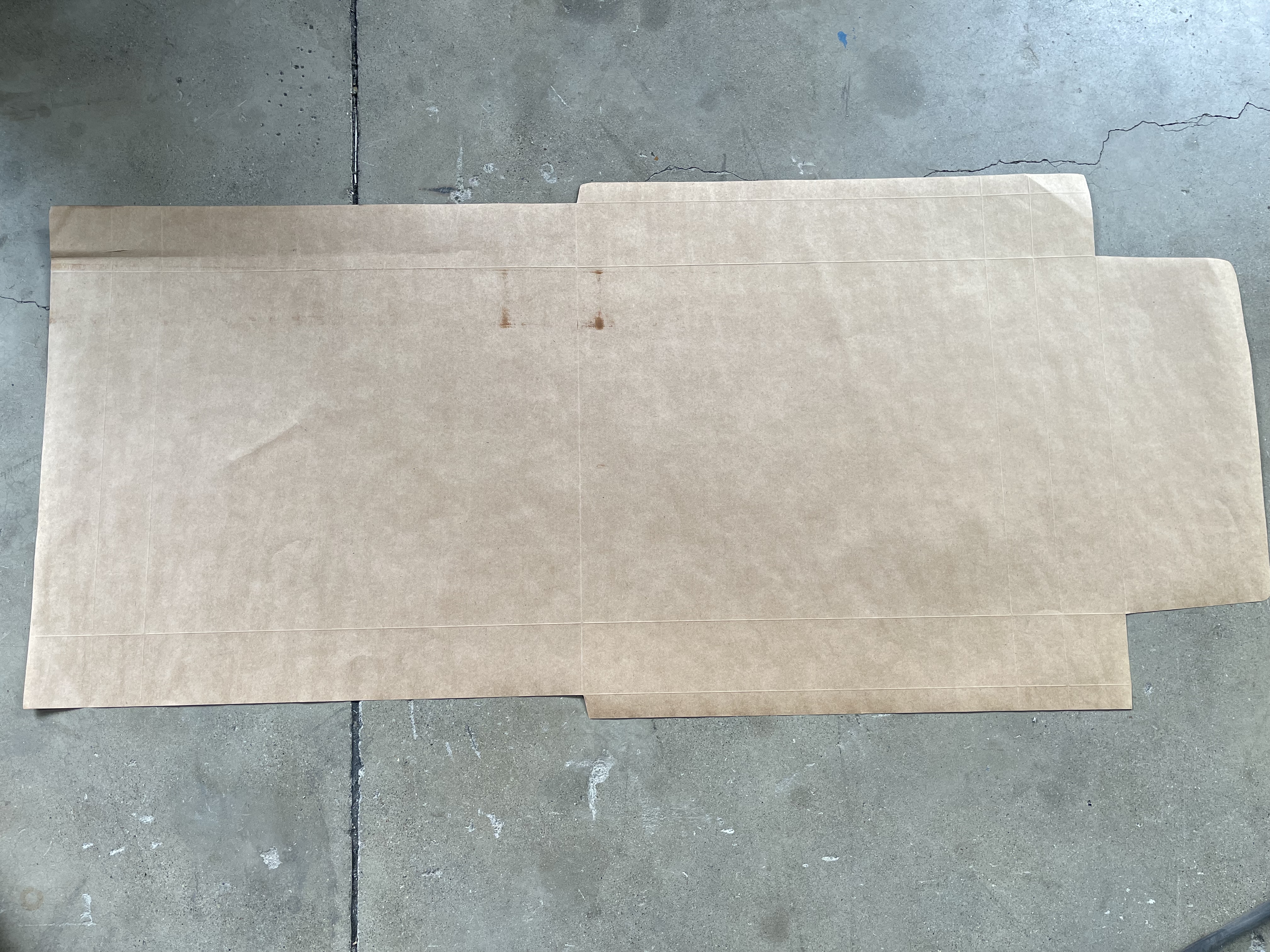

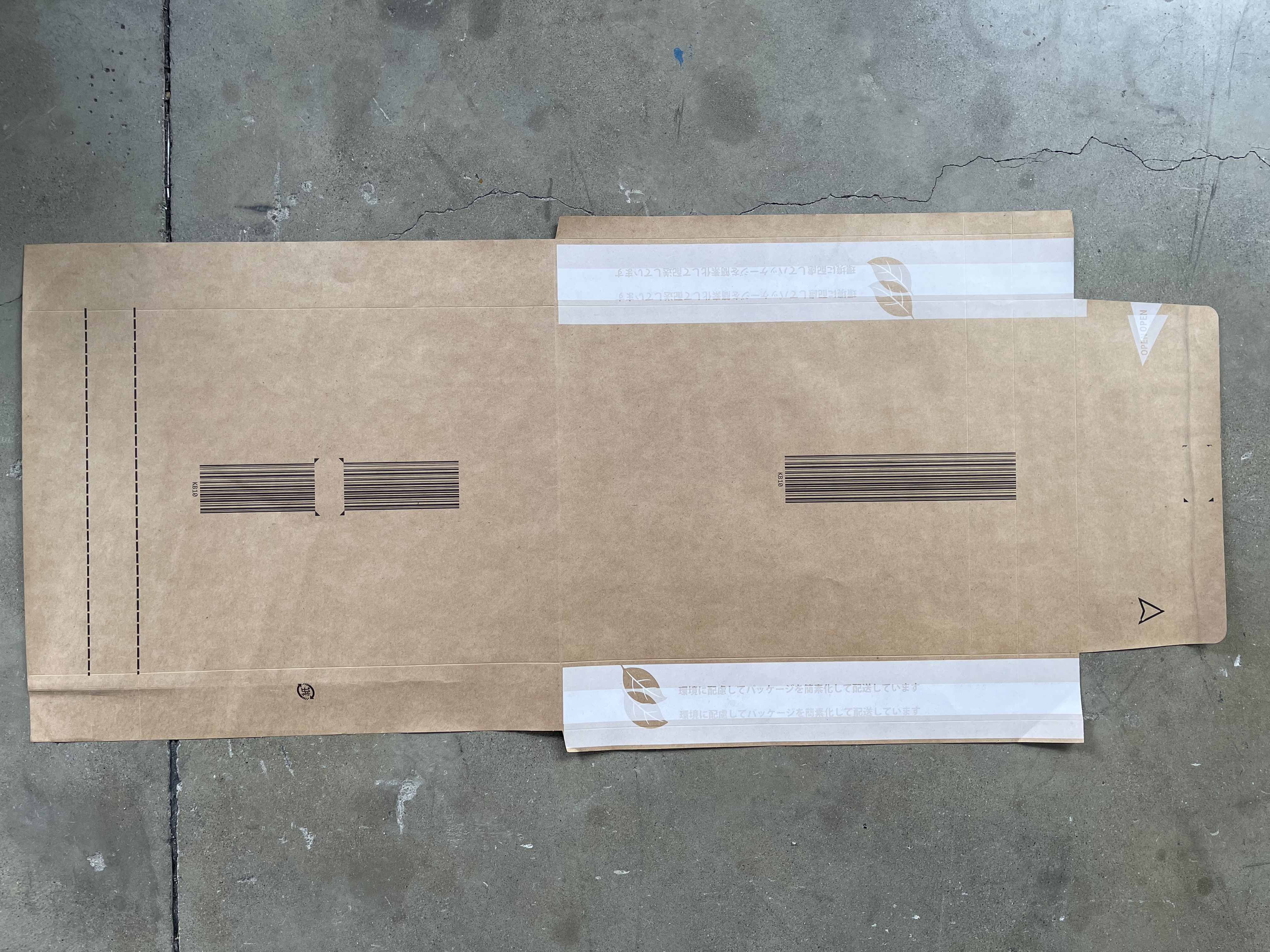

Sample
After-sales Service
Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.
Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.
What We Serve
Daily Service | Remote Assistance, Spare Parts Service, Technical Support |
Training Service | Operating Training, Folder Gluer Technology Training |
Maintenance | Equipment Debugging, Maintenance, Technology Optimization |
YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
