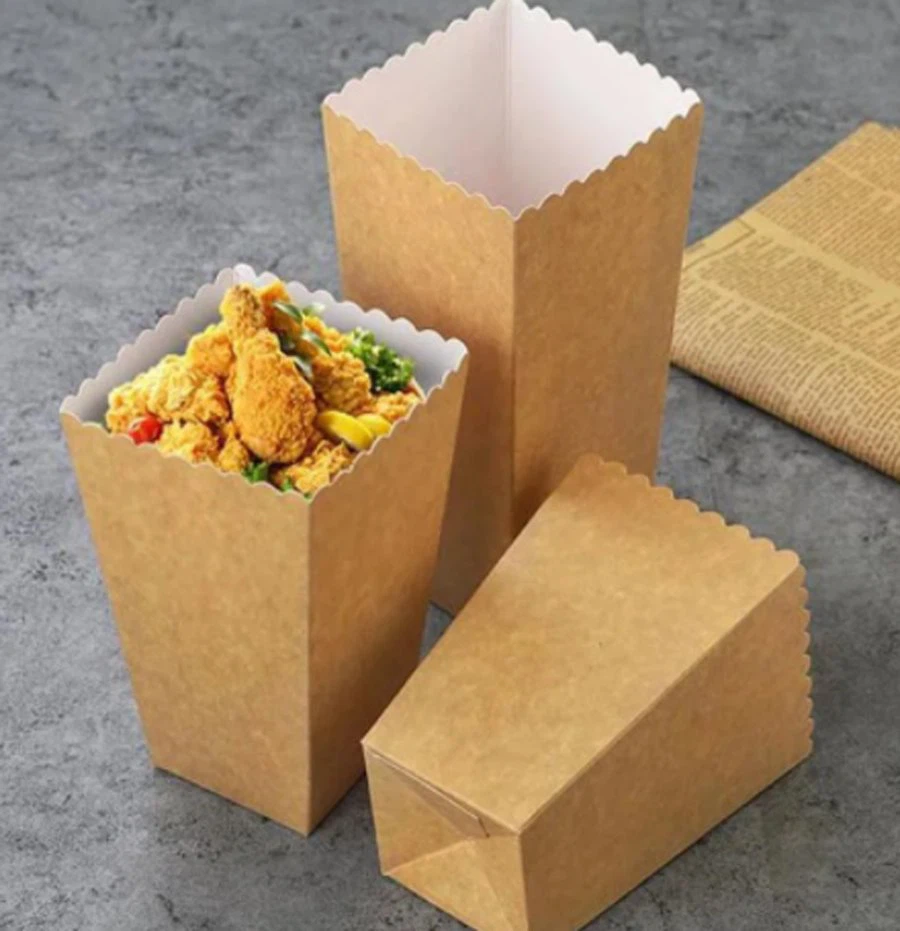

Samples Parameter

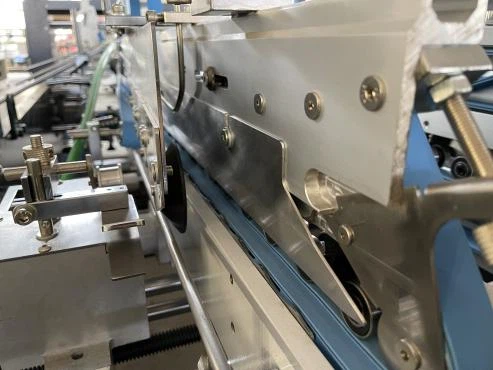

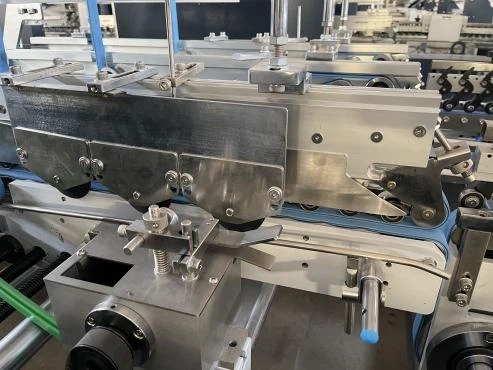

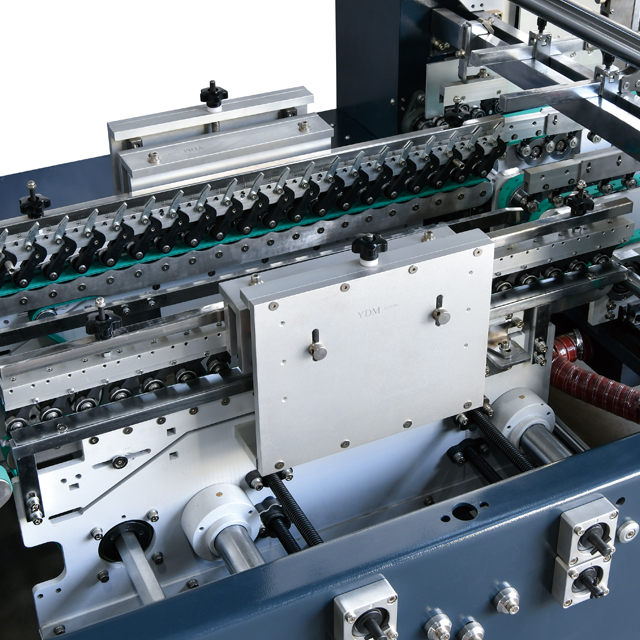

Lock-bottom Section
| ● Lower gluing tank both at left and right ● Multi-layer sealing anti-leaking device is used in shaft core. ● Stainless steel gluing wheel is used. ● Stainless steel lock bottom device :10pcs ● Modual design for bottom lock accessories ,easy for adjustment . |

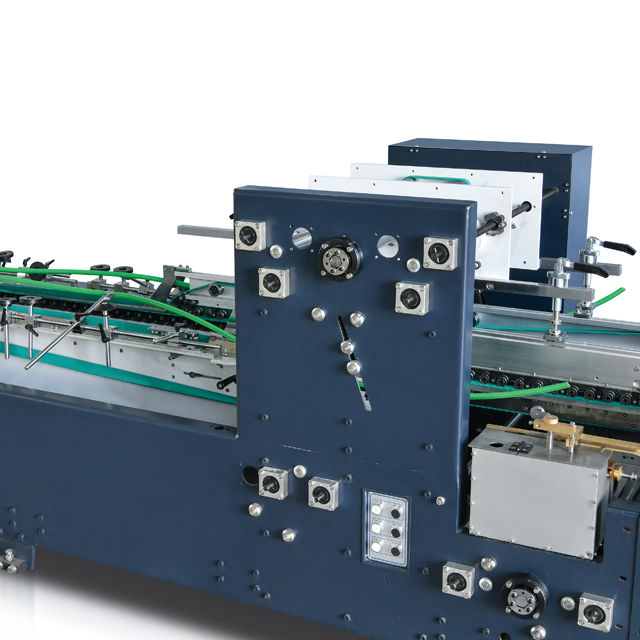

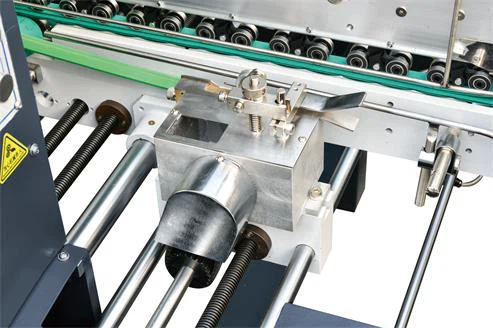

lower gluer tank
| ● equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance. Folding |

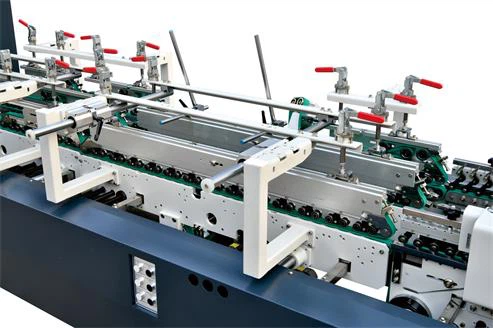

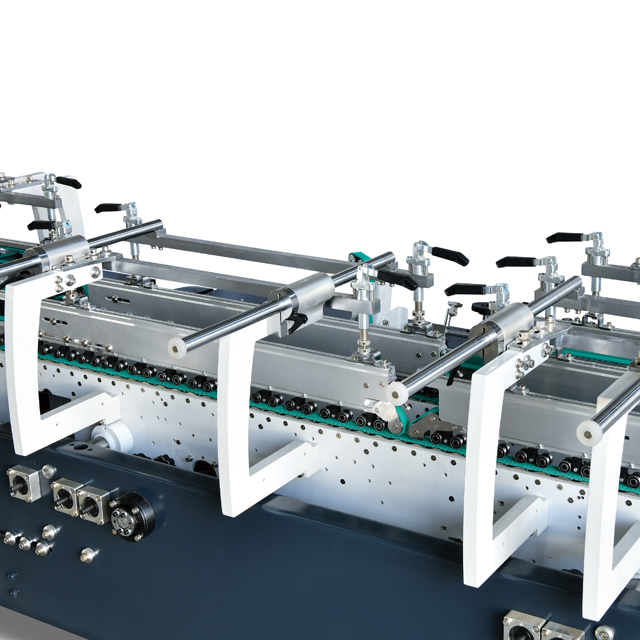

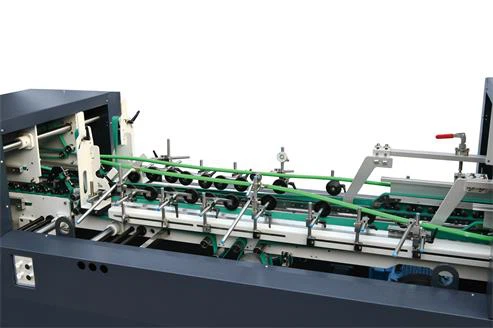

Folding
| ● Special long folding section, boxes can be well folded and formed in this section. ● Rail-guide for belts are used to avoid belts going to sides. ● to meet various kinds of work and precisely for blanks. ● smooth and accurate folding of 2nd and 4th creases |
Press wheel
| When the paper passes between the press wheel and the support roller, the line pressing action is carried out to realize automatic line pressing production, which is conducive to improving production efficiency, product quality and equipment accuracy. |
SPECIFICATIONS
PAPER THICKNESS 200—800g/㎡
MATERIAL ：CARDBOARD，B.C.E.F.Ncorrugated
Box Type One side
max:：W×L：800×780mm min：210×100mm
Lock bottom
maxW×L：750×780mm min：210×120mm
4 corner
max：W×L：750×780mm min：290×180mm
6corner
max：W×L:750×780mm min：290×700mm
Max Speed：.300m/min
Size 15000×1500×1500mm LWH
Weight 6T
Power 16KW

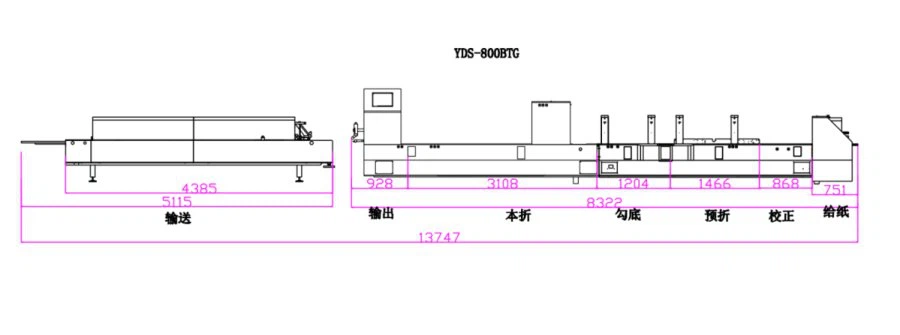

FUNDATIONDRAWING
Application

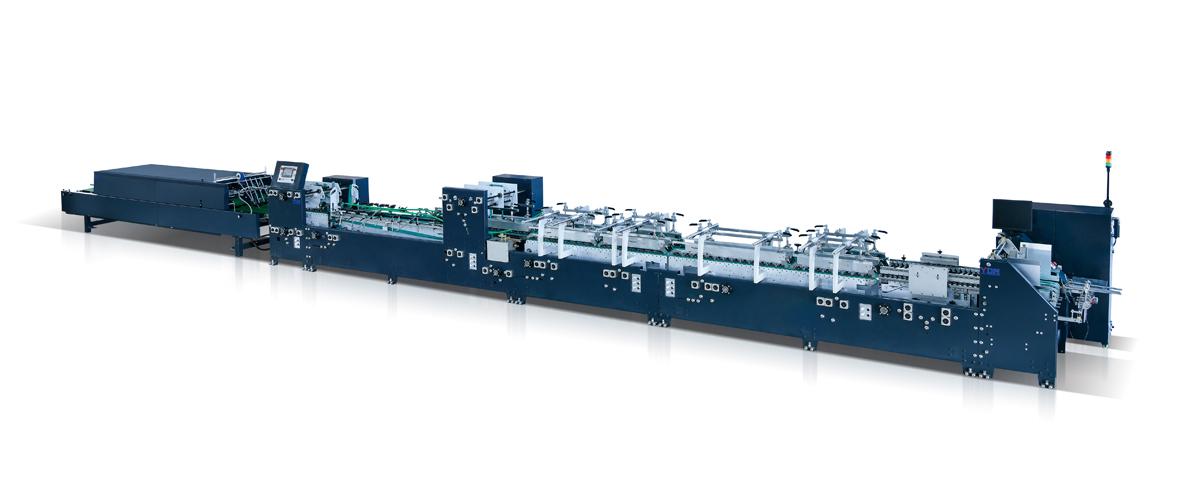

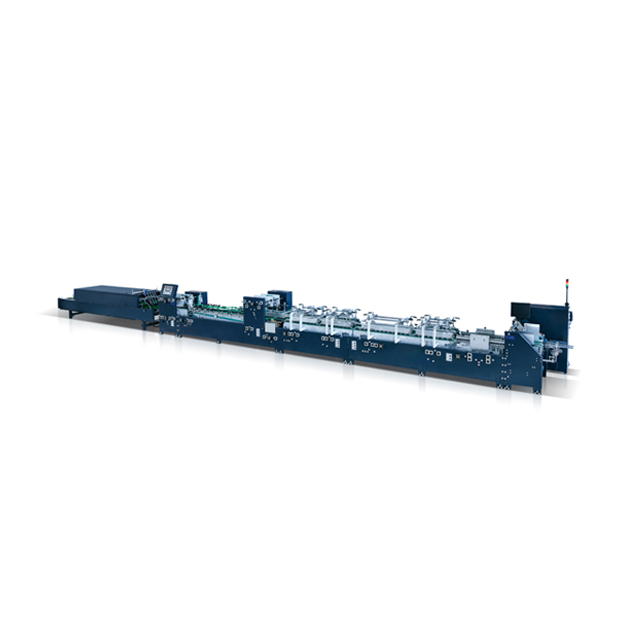

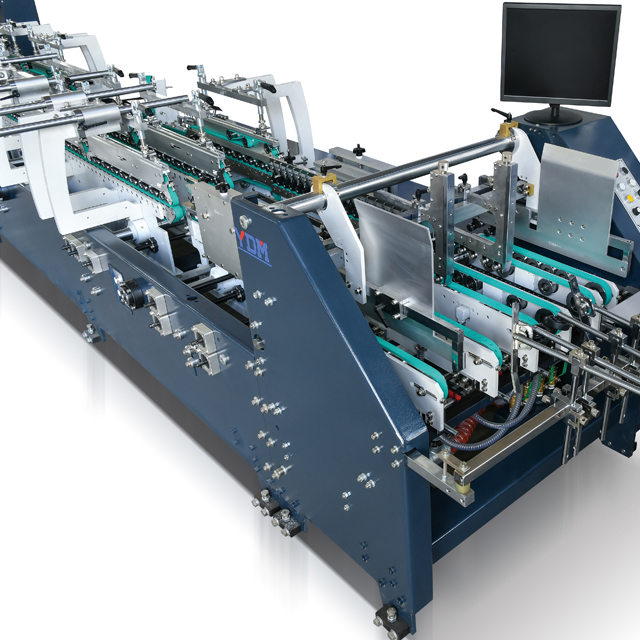

The High Speed Folder Gluer Machine Hot Sale in Vietnam folder gluer machine, is widely used in Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles , express, take out food and other fields, for the straight line edge glue boxes, lock bottom boxes, and 4/6 points glue boxes.
Hot Tags: High Speed Folder Gluer Hot Sale, Carton Folder Gluer Machine, Medicine Box Gluing Machines, Children Toys Paper Box Folder Gluer, Automatic Carton Folder Gluer Machine, Cardboard Folder Gluer, Automatic Lock Bottom Folder Gluer
After-sales Service
Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.
Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.
What We Serve
Daily Service | Remote Assistance, Spare Parts Service, Technical Support |
Training Service | Operating Training, Folder Gluer Technology Training |
Maintenance | Equipment Debugging, Maintenance, Technology Optimization |
YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
