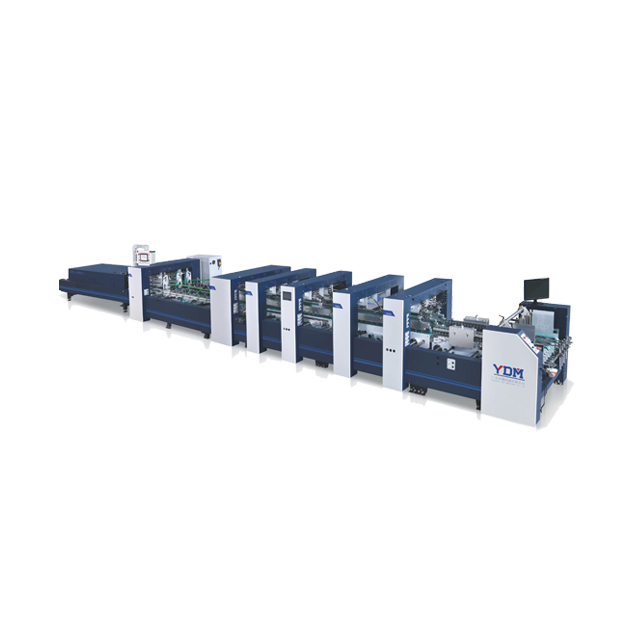

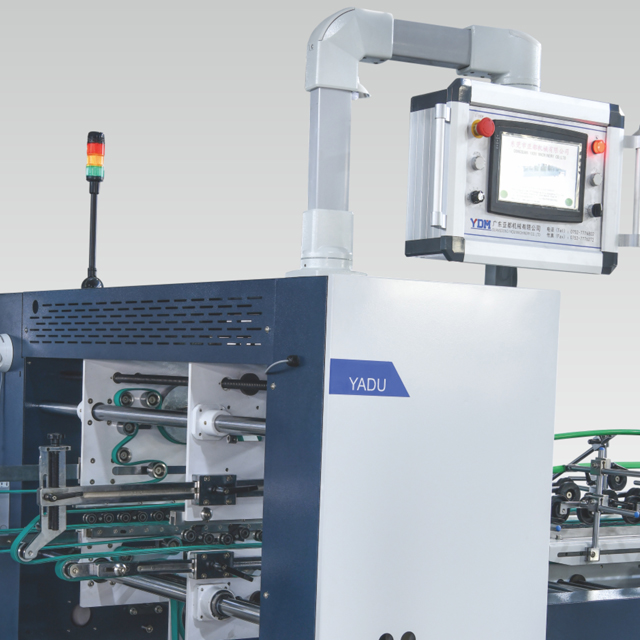

Six Corner Box Folder Gluer


Availability:



Inquire

Folder gluer Specifications: ZX-1200BTG
Cardboard: 1200gsm；Hot Tags: six corner box folder gluer, China, manufacturers, suppliers, factory, price, High Speed Folder Gluer, File Bag Folder Gluer, Automatic Lock Bottom Folder Gluer, Carton Folder Gluer Machine, Folder Gluer Machine, Gluer Folding Machine Cardboard

Product Description

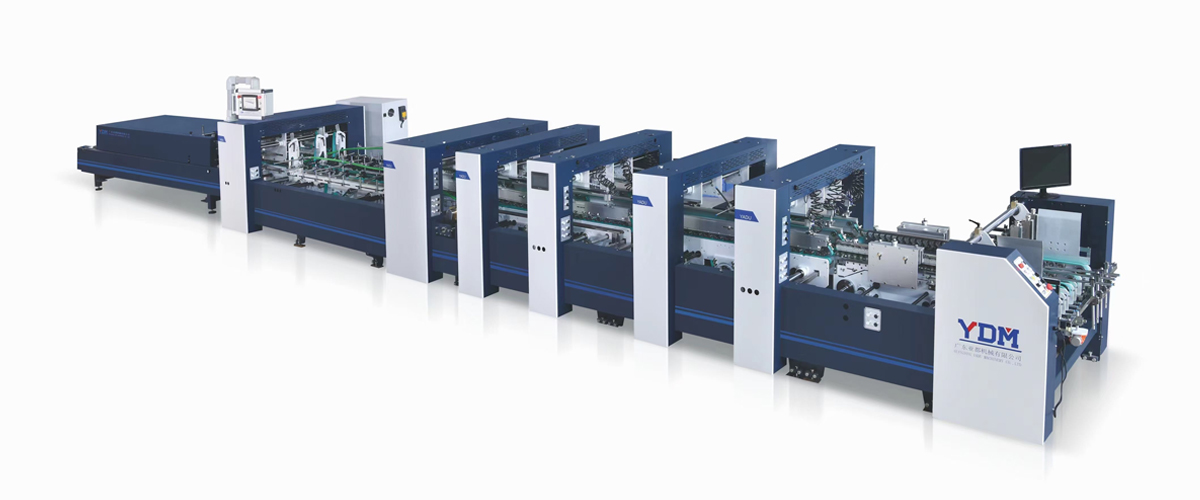

High-Speed-Folder-Gluer

Hot Tags: six corner box folder gluer, China, manufacturers, suppliers, factory, price, High Speed Folder Gluer, File Bag Folder Gluer, Automatic Lock Bottom Folder Gluer, Carton Folder Gluer Machine, Folder Gluer Machine, Gluer Folding Machine CardboardSpecifications	ZX-1200BTG
Cardboard	1200gsm
Corrugated	E,C,B,AB
	3ply 4-5mm
Max speed	400m/min
Inch speed	10 m/min
Paper fold thickness	20mm
Paper width	1200mm
Machine length	16M
Machine width	1.95M
Machine height	1.8M
Machine weight	9.5T
Main power	26KW
Total power	36KW
Air compressor	6 bar
capacity of air compressor	30 m³/h
capacity of air tank	155L

SAMPLE BOX		MAX min	MAX min

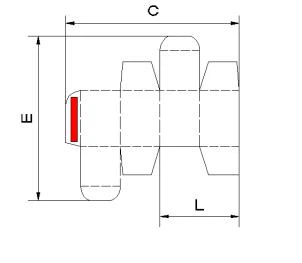

Straight line boxes	C	850 120	1200 180
	E	600 75	800 85
	L	400 60	550 80

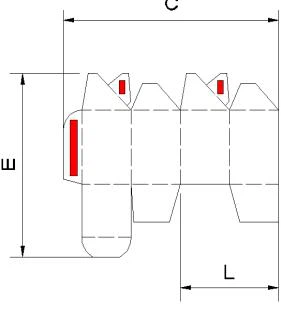

Lock-bottom boxes	C	800 200	1100 200
	E	600 80	800 100
	L	380 80	560 100

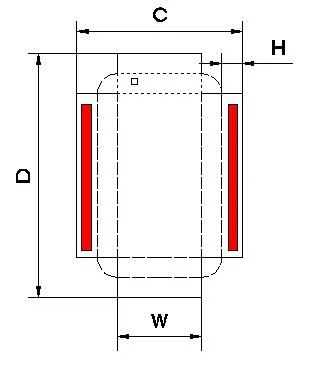

Double wall boxes	C	600 160	800 320
	E	600 120	800 140
	W	500 150	600 150
	H	120 25	150 25
4-corner boxes	C	800 180	1100 220
	E	600 150	800 160
	H	120 30	150 30

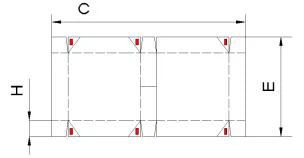

6-corner boxes	C	700 250	1000 350
	E	600 160	650 180
	H	100 30	120 40

Main electrical components and brand

Name	Made in	Brand
Feeding belts	JAPAN	NITTA
Folding belts	Italy	Chiorino
Synchronous belts	America	EP
Inverter	France	Schneider
Sensor in output	Taiwan China	FOTEK
PLC	Germany	SIEMENS
touch screen	Germany	SIEMENS
Main motor	Taiwan China	TECO
Motor in conveyor	Taiwan China	WANSHSIN
Wireless remote control	Taiwan China	YUDING
Power supply switch	Taiwan China	MW
Electrical components	France	Schneider
Bearing	JAPAN	NSK
Motor for adjust screw motor	Taiwan China	WANSHSIN

Folder gluer after-sales service

Daily Service	Remote Assistance, Spare Parts Service, Technical Support
Training Service	Operating Training, folder gluer Technology Training
Maintenance	Equipment Debugging, Maintenance, Technology Optimization

After-sales Service

Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.

Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.

What We Serve

Daily Service	Remote Assistance, Spare Parts Service, Technical Support
Training Service	Operating Training, Folder Gluer Technology Training
Maintenance	Equipment Debugging, Maintenance, Technology Optimization

YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
