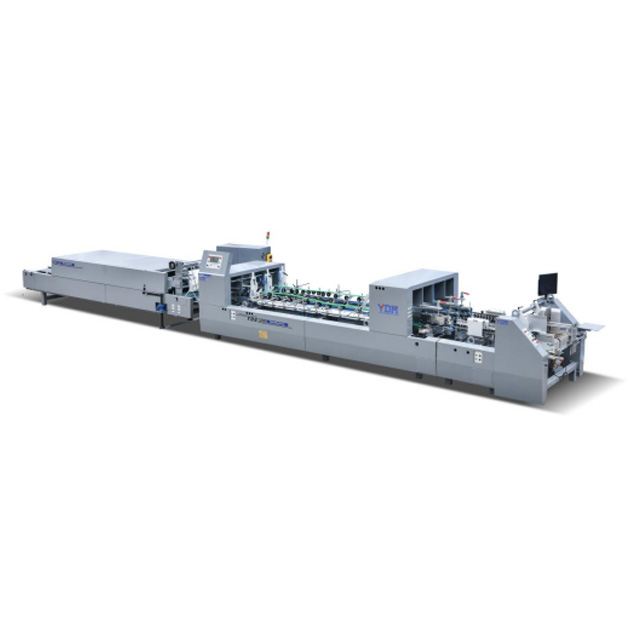

YDS-600BT Automatic Folder And Gluer Machine


Availability:



Inquire

● The whole machine adopts the structure of laser-cut steel plates.
● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.
● Modular structure and hommization design can enhance the installation and box change-over time.
● Inner couriers in the machine are adjusted by motors
● Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.

Product Description

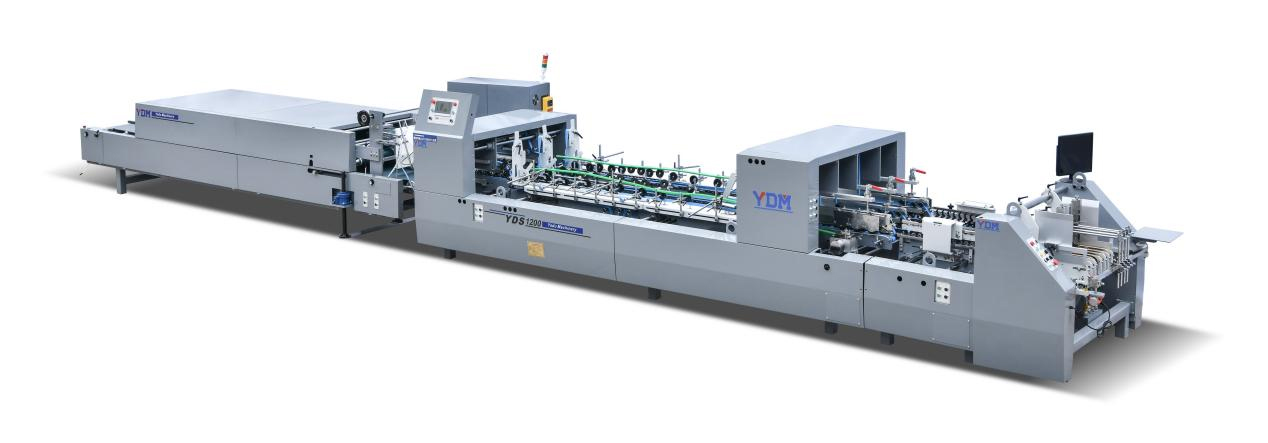

Automatic-folder-gluer-factory-manufacturer

Specification
Box Type	Paper Size (W x L)
Straight line	A: 100 - 600mm B:100- 580 mm
Paper weight	duplex box 200-800 g/m²,N、F、E Flute (Corrugated) corrugated boxes, 3 ply of E flute(3.5-4 mm thickness),
Max speed	250m/min
Overall dimension	12000 (L) ×1000 (W) ×1500mm(H)
Weight	5000Kg
Power consumption	13KW, 380V AC 50Hz
Box Type	Straight line boxes
Glue	Water melt
Air	6Bar

Main Feature

Description

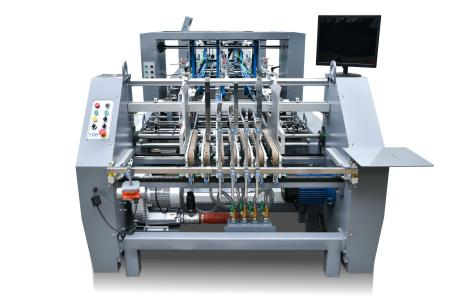

Feeder

●Feeding belts (specification：8×25×1207mm)

●Six feeder belts including 4 drilled belt for suction function.

● Equipped with adjustable feeding knives:

● Equipped with vibrator motor :

● Equipped with Suction feeding system:

● Independent A/C motor with variable speed adjustment for even distance of sheets

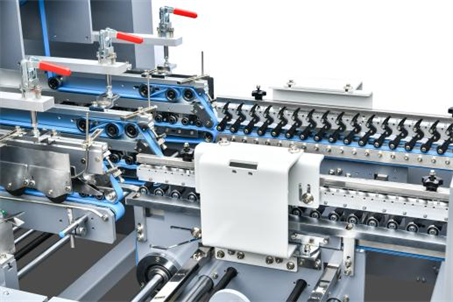

Register

●Automatic register section to correct the paper feeding ,avoid the paper going to sides.

●Equipped with a set of register device (left and right)

Lower gluer tank
	●Equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.

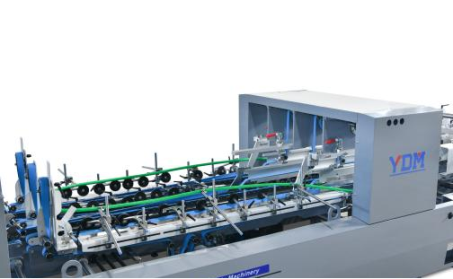

Folding

● Special long folding section, boxes can be well folded and formed in this section.

● Rail-guide for belts are used to avoid belts going to sides.

●To meet various kinds of work and precisely for blanks.

●Smooth and accurate folding of 2^nd and 4^th creases

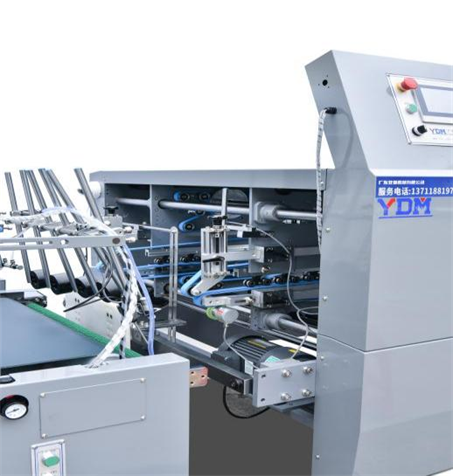

Pressing section

● Taiwan FATEK sensor and counter

● Pneumatic kicker for counting

● EP belts

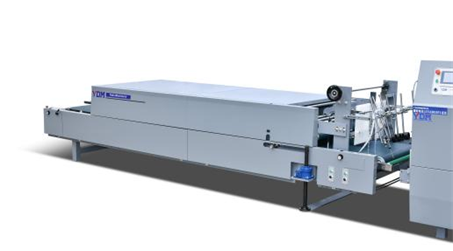

Conveyor

● Long conveyor design

● Pneumatic control

● The upper section can be moved front and back.

● The two belts are in driving system, so they could be in more synchronous running.

Features

● The whole machine adopts the structure of laser-cut steel plates.

● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.

●Modular structure and hommization design can enhance the installation and box change-over time.

●Inner couriers in the machine are adjusted by motors

●Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.

After-sales Service

Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.

Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.

What We Serve

Daily Service	Remote Assistance, Spare Parts Service, Technical Support
Training Service	Operating Training, Folder Gluer Technology Training
Maintenance	Equipment Debugging, Maintenance, Technology Optimization

YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
