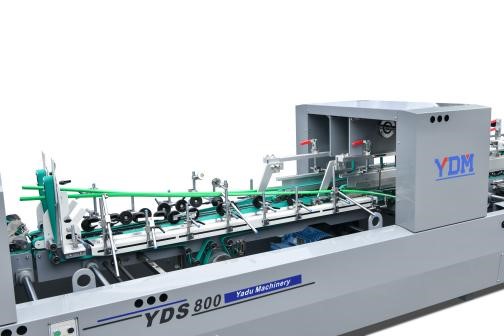

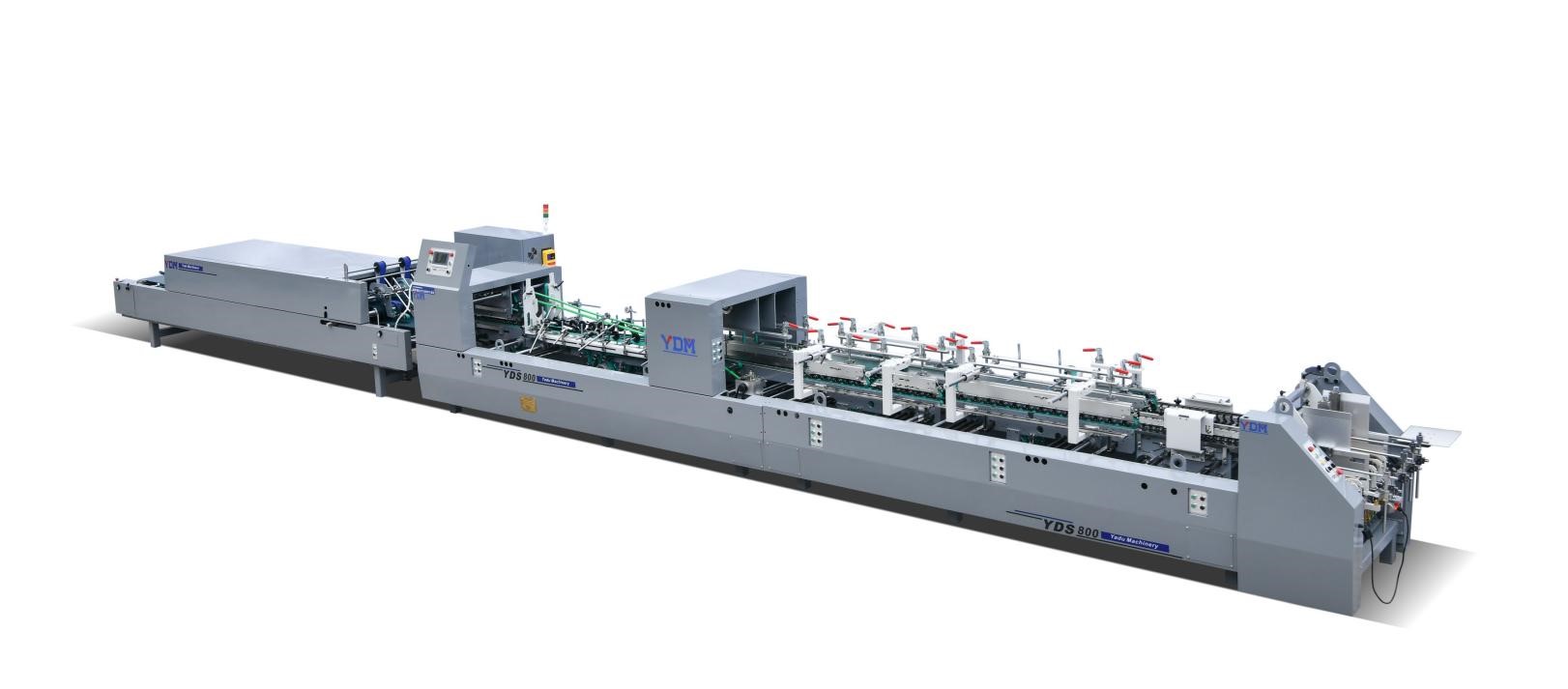

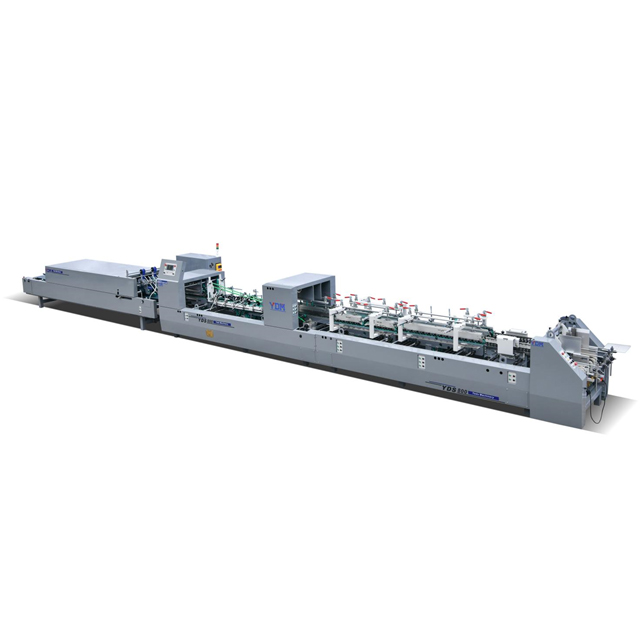

YDS-600BTS Automatic 4/6 CORNER Box Folder Gluer Box Pasting Machine


Availability:



Inquire

● the whole machine adopts the structure of laser-cut steel plates.
● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.
● Modular structure and hommization design can enhance the installation and box change-over time.
● Inner couriers in the machine are adjusted by motors
● Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.

Product Description

ITEM	DESCRIPTION		Price (RMB)
1.	Automatic folder and gluer Brand : YDM Model : YDS-600BTS Origin : CHINA		（FOB SHENZHEN）
	Specification
	Box Type	Paper Size (W x L)
	Straight line	A: 50 - 600mm B:95- 600 mm
	Lock-bottom	A: 70 - 500 mm B: 100- 550 mm

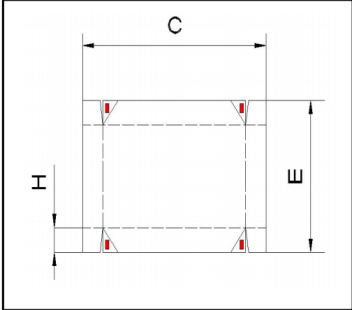

	4 CORNER	C:180-500 E:140-500 H:25-100 mm

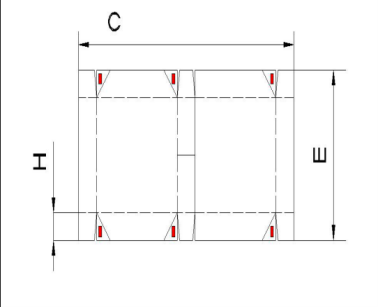

	6 CORNER	C:180-480 E:140-500 H:25-100 mm
	Paper weight	duplex box 200-800 g/m²,N、F、E Flute (Corrugated) corrugated boxes, 3 ply of E flute(3.5-4 mm thickness),
	Max speed	300m/min
	Overall dimension	14000 (L) ×1350 (W) ×1500mm(H)
	Weight	5500Kg
	Power consumption	16KW, 380V AC 50Hz

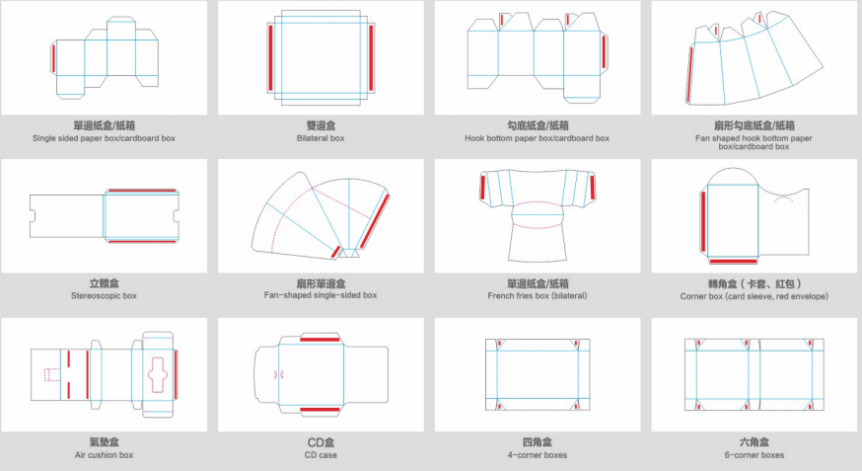

	Box Type	Straight line boxes ,lock bottom boxes ,4/6 CORNER boxes , food box
	Box samples 4/6 corner boxes are optional
	Glue	Water melt
	Air	6Bar

Specilists：

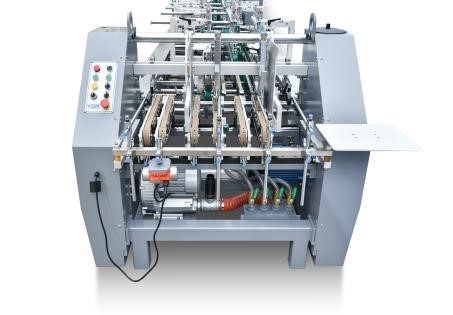

Feeder
	●feeding belts (specification：6×25×1207mm) ●Six feeder belts including 4 drilled belt for suction function. ●Equipped with adjustable feeding knives: ● Equipped with vibrator motor : ● Equipped with Suction feeding system: ● Independent A/C motor with variable speed adjustment for even distance of sheets
register
	● automatic register section to correct the paper feeding ,avoid the paper going to sides. ● Equipped with a set of register device (left and right)
Profold
	● meet variety of complex boxes adjustments. ● Long re-folding device ,1^st folding line is 180 °, 3^rd folding line has 135。It is use for easy opening boxes.
Lock-bottom Section
	● Lower gluing tank both at left and right ● Multi-layer sealing anti-leaking device is used in shaft core. ● Stainless steel gluing wheel is used. ● Stainless steel lock bottom device :10pcs ● Modual design for bottom lock accessories ,easy for adjustment .
lower gluer tank
	● equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.

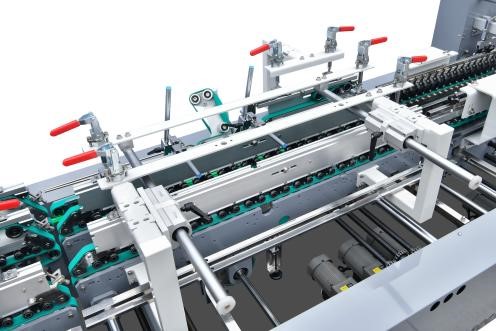

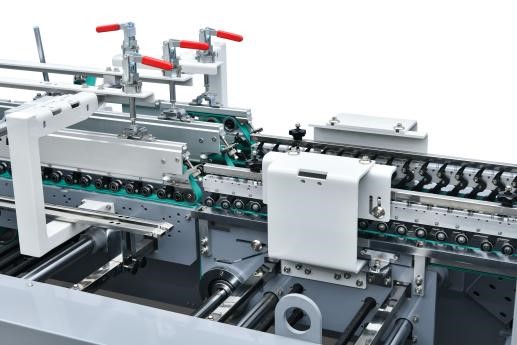

Folding
	● Special long folding section, boxes can be well folded and formed in this section. ● Rail-guide for belts are used to avoid belts going to sides. ● to meet various kinds of work and precisely for blanks. ● smooth and accurate folding of 2^nd and 4^th creases
Pressing section
	● Taiwan FATEK sensor and counter ● Pneumatic kicker for counting ● EP belts

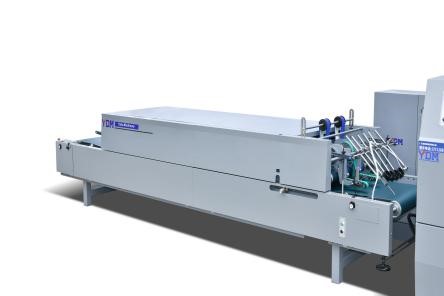

Conveyor
	● Long conveyor design ● Pneumatic control ● The upper section can be moved front and back. ● The two belts are in driving system, so they could be in more synchronous running.

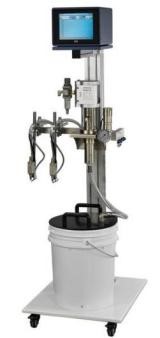

Optional:GLUING SYSTEM	4 control and 2 Guns

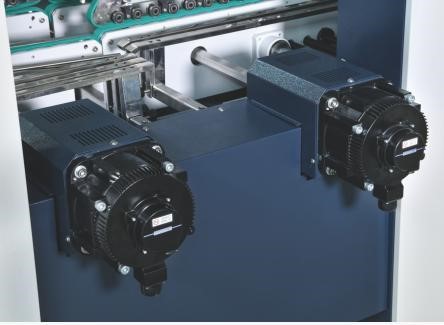

back fold servo system	4/6 corner boxes production available

2. FEATURES

● the whole machine adopts the structure of laser-cut steel plates.

● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.

● Modular structure and hommization design can enhance the installation and box change-over time.

● Inner couriers in the machine are adjusted by motors

● Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.

After-sales Service

Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.

Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.

What We Serve

Daily Service	Remote Assistance, Spare Parts Service, Technical Support
Training Service	Operating Training, Folder Gluer Technology Training
Maintenance	Equipment Debugging, Maintenance, Technology Optimization

YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
