RE | Automatic Paper Box Folder Gluer | ||
Dear We are pleased to offer the following machine for your consideration. | |||
ITEM | DESCRIPTION | Price (RMB) | |

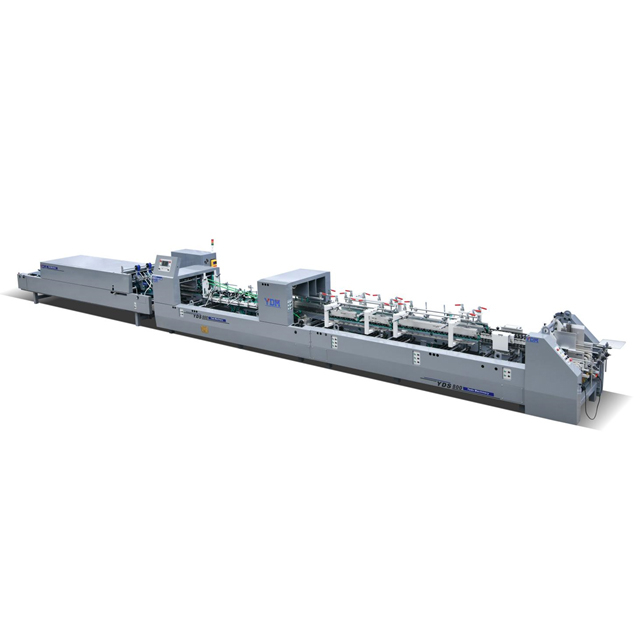

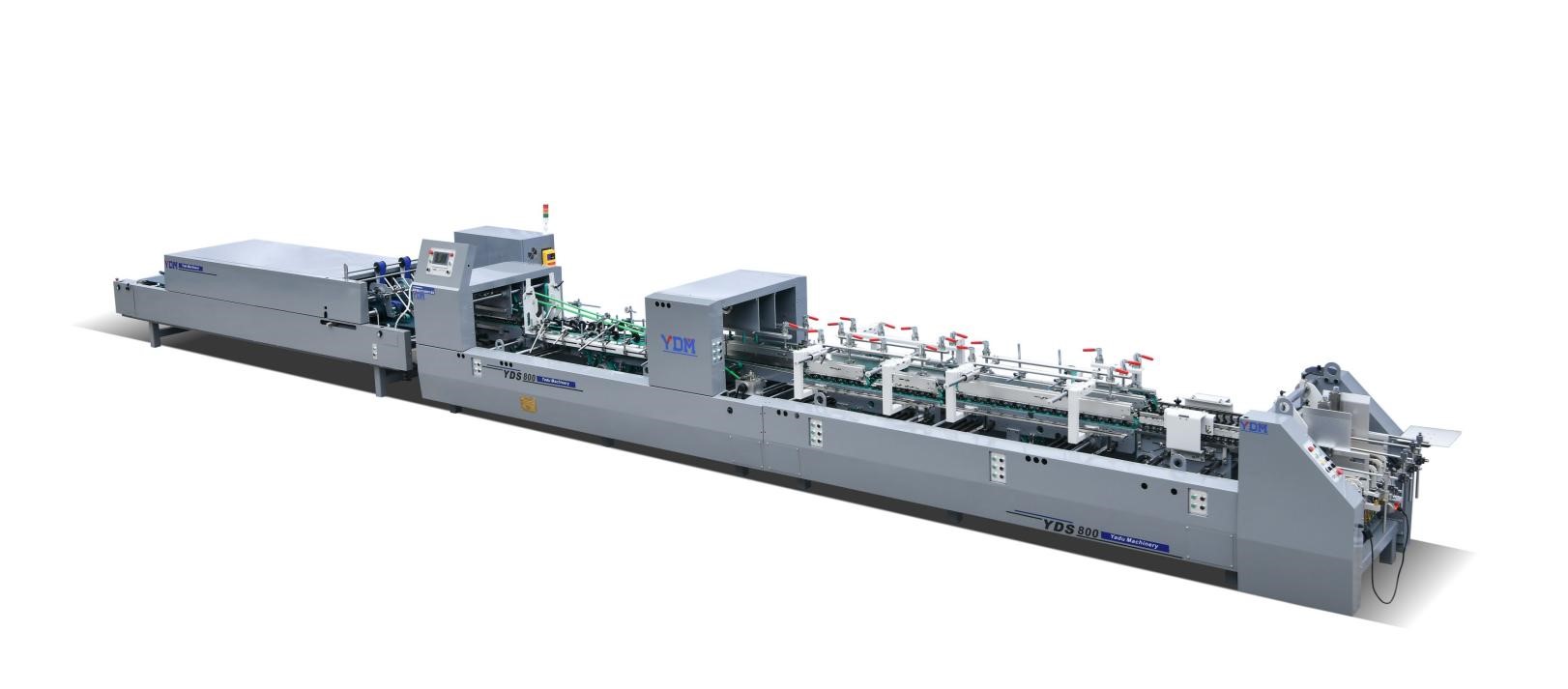

1. | Automatic folder and gluer Brand : YDM Model : YDS-800BTG Origin : CHINA | （FOB SHENZHEN） | |
Specification | |||
Box Type | Paper Size (W x L) | ||
Straight line
| A: 150 - 800mm B:75- 780 mm | ||
Lock-bottom
| A: 150 - 750 mm B: 60- 750 mm | ||
Paper weight | duplex box 200-800 g/m2,N、F、E Flute (Corrugated) corrugated boxes, 3 ply of E flute(3.5-4 mm thickness), | ||
Max speed | 300m/min | ||
Overall dimension | 14500 (L) ×1550 (W) ×1600mm(H) | ||
Weight | 6000Kg | ||
Power consumption | 16KW, 380V AC 50Hz | ||
Box Type | Straight line boxes ,lock bottom boxes | ||

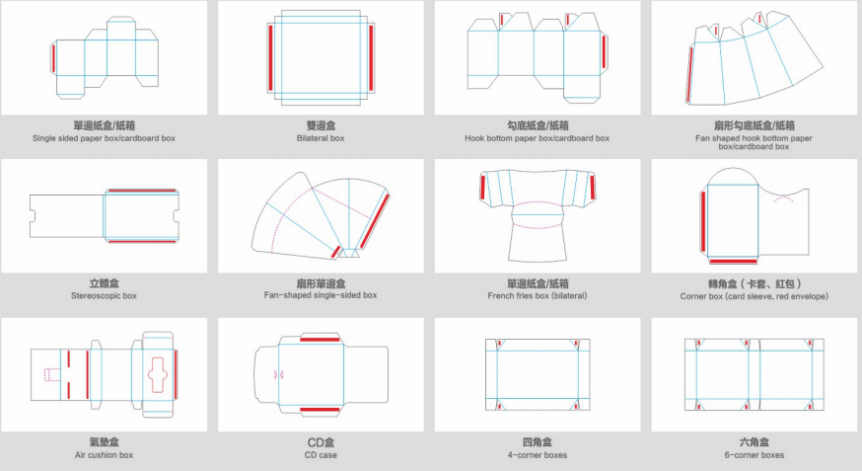

Box samples 4/6 corner boxes are optional |
| ||
Glue | Water melt | ||
Air | 6Bar | ||
1. Specilists：

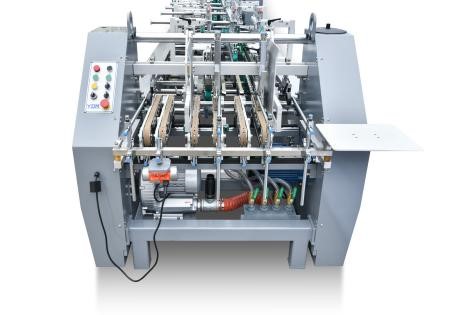

Feeder | |
| ● feeding belts (specification：8×25×1207mm) ● Six feeder belts including 4 drilled belt for suction function. ● Equipped with adjustable feeding knives: ● Equipped with vibrator motor : ● Equipped with Suction feeding system: ● Independent A/C motor with variable speed adjustment for even distance of sheets
|
| register | |
 | ● automatic register section to correct the paper feeding ,avoid the paper going to sides. ● Equipped with a set of register device (left and right) |

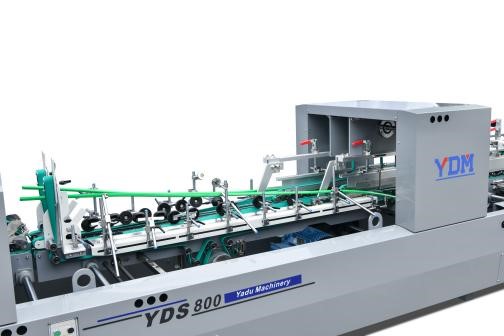

| Profold | |
 | ● meet variety of complex boxes adjustments. ● Long re-folding device ,1st folding line is 180 °, 3rd folding line has 135。It is use for easy opening boxes. |
| Lock-bottom Section | |

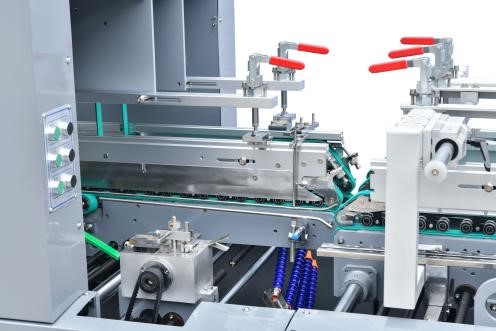

 | ● Lower gluing tank both at left and right ● Multi-layer sealing anti-leaking device is used in shaft core. ● Stainless steel gluing wheel is used. ● Stainless steel lock bottom device :10pcs ● Modual design for bottom lock accessories ,easy for adjustment . |
| lower gluer tank | |
 | ● equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance. |

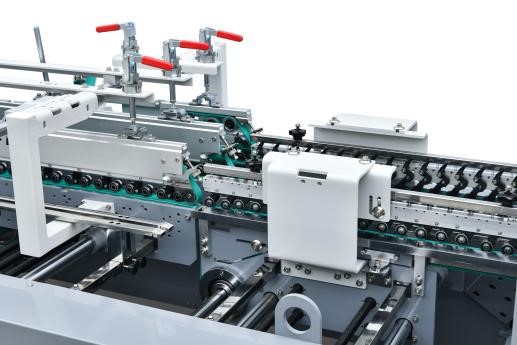

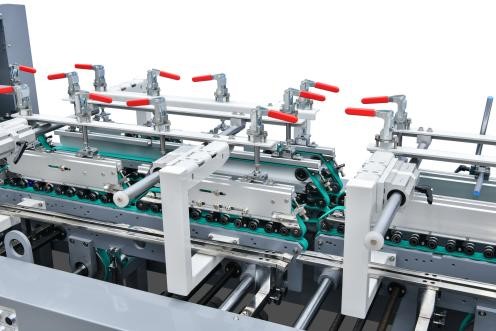

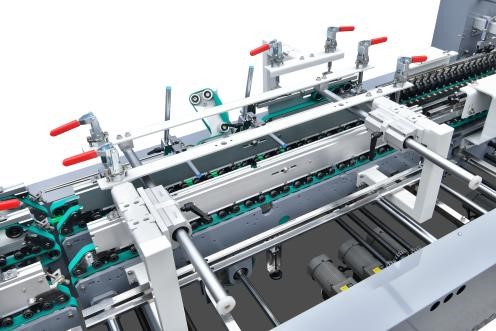

| Folding | |
 | ● Special long folding section, boxes can be well folded and formed in this section. ● Rail-guide for belts are used to avoid belts going to sides. ● to meet various kinds of work and precisely for blanks. ● smooth and accurate folding of 2nd and 4th creases |
| Pressing section | |
 | ● Taiwan FATEK sensor and counter ● Pneumatic kicker for counting ● EP belts |

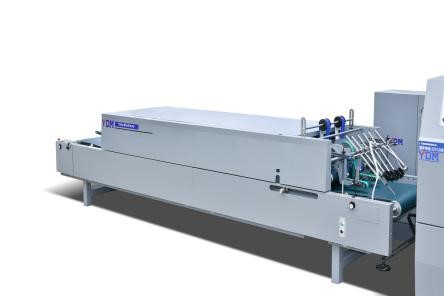

| Conveyor | |
 | ● Long conveyor design ● Pneumatic control ● The upper section can be moved front and back. ● The two belts are in driving system, so they could be in more synchronous running. |

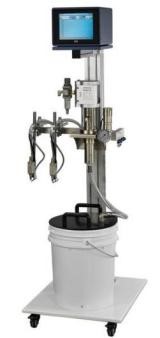

Optional:GLUING SYSTEM
| 4 control and 2 Guns |
2. FEATURES
● the whole machine adopts the structure of laser-cut steel plates.
● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.
●Modular structure and hommization design can enhance the installation and box change-over time.
●Inner couriers in the machine are adjusted by motors
●Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.
After-sales Service
Every machine manufactured from YDM factory goes through strict test from our professional engineers, eliminating any possibility of low quality or faulty machines. Our after-sales team will give free technical training on our equipment, including machine principle, operating methods, maintenance and common trouble shooting plan.
Prompt and professional service is our promise to customers. We will react in 24 h for weekdays and in 48 h for weekends.
What We Serve
Daily Service | Remote Assistance, Spare Parts Service, Technical Support |
Training Service | Operating Training, Folder Gluer Technology Training |
Maintenance | Equipment Debugging, Maintenance, Technology Optimization |
YDM emphasizes on customers’ demand and pursues prompt and professional technical support and after-sales service to keep the optimal operating condition of equipment and help to improve the operating skills, and thus gets a high profit.
